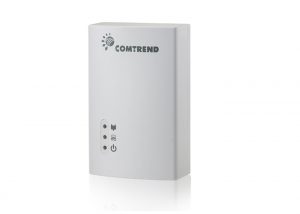

PG-9141s: 200Mbps HomePlug® AV ClearPath™ Powerline Ethernet Adapter

Features

Switches to the ground-wire pair as needed t reduce noise interference Powerline technology is capable of covering more than 95% of a typical household There’s typically 10x more electrical outlets than cable/phone outlets per home Secure communication at the touch of a button Features TR-069 remote management Power-Saving mode when inactive Built-in Quality of Service (QoS) IGMP(IPv4) Snooping & MLD(IPv6) Snooping

Specifications

Interface

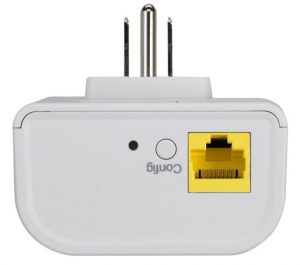

• RJ-45 X 1 for Ethernet connection
• AC power plug X 1

Ethernet

• Standard IEEE 802.3u
• One 10/100 BaseT Ethernet Port
• Auto rate and duplex negotiation
• MDI/MDX support

Modulations

• OFDM, FEC; Flexible frequency configuration
• Data Rate Up to 200Mbps

Data Rate

• Up to 200Mbps

Management

• Firmware upgrade via TFTP, TR-069 Supported

Security

• AES 128 bits encryption ensures total data security

Networking Protocols

• 802.1D Ethernet Bridge 802.1Q VLAN
• Quality of Service (QoS)
• IGMP(IPv4) Snooping & MLD(IPv6) Snooping

Power

• 100-240 VAC 50Hz/60Hz
• Auto power saving mode max 0.5W (in standby mode)

Environment Condition

• Operating temperature: 0 ~ 40 degrees Celsius
• Relative humidity: 8 ~ 95% (non-condensing)

Dimensions

• (H)93mm x (W)59.6mm x (D)56/35mm (with/without plug)
• Certifications FCC

Certifications

• FCC

Note: Specifications are subject to change without notice
