Features
Resources
Specifications
Features

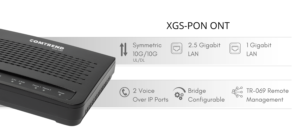

Next-Generation XGS-PON: Future-proof with the new XGS-PON standard that can co-exist with existing GPON and is capable of delivering symmetric 10G speeds.
Meet Growing Bandwidth Demand: Deliver ultra-fast speeds that enable the highest bandwidth applications (e.g. AR/VR, over the top video, and Cloud gaming).
Boost Revenue with Top-Tier Speed Packages: Offer higher-priced residential broadband speeds enabled by XGS-PON deployments.
Resources
Product Sheet
Description
Two page data sheet with product pictures and specifications.
Specifications
Hardware

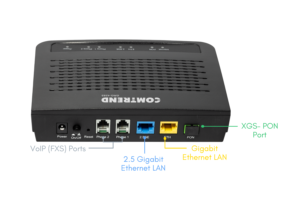

- XGS-PON (SC/APC) x 1
- 2.5 Gigabit Ethernet LAN x 1
- Gigabit Ethernet LAN x 1
- VoIP (FXS) x 2
- LED Indicators: Power, Internet, PON, 2.5G ETH, ETH, Phone 1, Phone 2
- Reset Button x 1
- Power Input 12VDC/1.0A
Management
- TR-069 Support, HTTP, HTTPS, TELNET, SSH
Physical Specifications
- Product Dimensions:
- 6.75in (W) x 4.72in (D) x 1.75in (H)
- 171.5mm (W) x 119.9 (D) x 44.5mm (H)
- Product Weight: 181 g (0.4 lb)
- Packing Dimensions:
- 7.63in (W) x 5.13in (D) x 3.38in (H)
- 193.8mm (W) x 130.3mm (D) x 85.9mm (H)
- Packing Weight: 544 g (1.2 lb)
Certifications
- FCC, IC, CE
Environment Conditions
- Temperature
- Operating: 32°F ~104°F (0°C ~40°C)
- Storage: -40°F ~158°F (-40°C ~ 70°C)
- Humidity:
- Operating: 10 ~ 90% RH, non-condensing
- Storage: 5 ~ 90% RH, non-condensing
Package Contents
- GRG-4283 x 1
- Power Adapter 12VDC/1.0A, 100-240ACV, 50/60Hz, 1.5m x 1
- RJ-45 Gigabit Ethernet cable (8P8C, 1.5m) x 1
Note: Specifications are subject to change without notice
