Maximizes Video Streaming
Equipped with Quantenna’s latest 802.11ac Wave 2 technology, the NexusLink 3120 delivers super-charged 4×4 AC2050, MU-MIMO wireless connectivity with dynamic digital beamforming to enhance video experience.
Provides Optimized Performance
Supports the latest G.vector & G.inp technologies to work together to mitigate crosstalk and impulse noise resulting in greater throughput.
Allows for Deployment Versatility
Use a single unit for copper and fiber deployments. Equipped with a combo WAN/LAN port to be configured either as WAN for fiber deployments or an additional LAN port for copper deployments.
Future-Proofs with A/VDSL
The NexusLink 3120 offers VDSL2 with ADSL2+ fallback for flexible future transitional deployments. Use a single unit for both ADSL2+ and VDSL2 deployments.
Two page data sheet with product pictures and specifications.

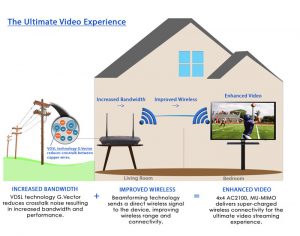

Illustration of this product’s usage.
Hardware
- RJ-14 X 1 for ADSL2+/VDSL
- RJ-45 X 4 for LAN (10/100/1000 Base-T auto-sense)
- RJ-45 X 1 for WAN (10/100/1000 Base-T auto-sense)
- Reset button X 1
- WPS & WiFi On/Off button X 2
- WiFi Antennas X 4 (Internal X 2, External X 2)
- Power switch X 1
- USB 3.0 Host X 1
VDSL Features
- Supports VDSL profiles, 8a/b/c/d, 12a/b, 17a, 30a and 35b
- Support VDSL band plan, Annex A, 997, 998
- Packet Transfer Mode (PTM) up to 17a bonding
- US0 support
- Seamless Rate Adaption (SRA)
- G.INP support
- G.vector support
ADSL Features
- T1.413, G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2) and
- G.992.5 (ADSL2+)
- Annexes A, L (Reach Extended ADSL2), and M (Enhanced Upstream Speed)
- Seamless Rate Adaption (SRA)
- Support VC-based and LLC-based multiplexing
- Support up to 16 PVCs
- ATM shaping: UBR/CBR/VBR-rt//VBR-nrt
- G.INP support
WLAN
- IEEE 802.11n 2.4GHz, backward compatible with 802.11b/g
- 400mW high power
- 2T2R antenna array
- Up to 300Mbps PHY rate
- IEEE 802.11ac 5GHz, backward compatible with 802.11a/n
- 400mW high power
- 4T4R antenna array
- Up to 1733Mbps PHY rate
- WPA/WPA-PSK, WPA2/WPA2-PSK with TKIP & AES security type
- Multiple SSID
- MAC address filtering
LAN
- 10/100/1000 Base T, IEEE 802.3, IEEE 802.3u IEEE 802.3ab
- Support MDI/MDIX
USB
- File sharing
- Print server
Management
- TR-069/TR-098/TR-104/TR-111, SNMP, Telnet, Web-based management, Configuration backup and restoration
- TR-143 (Network throughput performance tests and statistical monitoring)
- Fine Point’s TR-069 enhanced functionality is available on this model with specified software
- Software upgrade via HTTP, TFTP server, or FTP server
Networking Protocols
- RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Router, RFC
- 2516 (PPPoE); RFC 1577 (IPoA)
- PPPoE pass-through, Multiple PPPoE sessions on single WAN interface
- PPPoE filtering of non-PPPoE packets between WAN and LAN
- Transparent bridging between all LAN and WAN interfaces
- 802.1p/802.1q VLAN, DSCP
- IGMP Proxy V1/V2/V3, IGMP Snooping V1/V2/V3, Fast leave
- Static route, RIP v1/v2, ARP, RARP, SNTP
- DHCP Server/Client/Relay
- DNS Proxy/ Relay, Dynamic DNS
- UPnP
- DLNA
- IPv6 Dual Stack
- IPV6 Rapid Deployment (6RD)
Firewall/Filtering
- Stateful Packet Inspection Firewall
- Stateless Packet Filter
- Parental Control
- URI/URL filtering
- Denial of Service (DOS): ARP attacks, Ping attacks, Ping of Death,
- LAND, SYNC, Smurf, Unreachable, Teardrop
- Port Scan Detection and Protection
- TCP/IP/Port/interface filtering rules support both incoming and outgoing filtering
NAT/NAPT
- Support One to One, Many to One, Many to Many (Overload),
- Many to Many (No Overload) NAT
- NAT Loopback
- Port Triggering
- Port Forwarding (Virtual Server)
- Symmetric port-overloading NAT, Full-Cone NAT
- DMZ host
- VPN Pass Through (PPTP, L2TP, IPSec)
Environmental Conditions
- Operating: 32~104°F (0~40C)
- Relative humidity: 5~95% (Non-condensing)
Note: Specifications are subject to change without notice
