Key Benefits
Key Benefits
Expand to a Gigabit Network

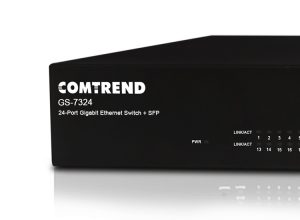

The GS-7324 allows for an easy way to transition to a Gigabit network. Gigabit ports are 10x faster than standard ports.
Energy Efficient
The GS-7324 supports IEEE802.3az for eco-friendly Ethernet function.
Optimized Performance
The GS-7324 supports auto MDI/MDI-X crossover detecting and auto-detection for an enhanced Internet experience.
Connect & Go
With no configuration needed, this series of unmanaged switches are plug and play.
Features
- 24 x 10/100/1000 Mbps auto-sensing and auto MDI/MDI-X RJ-45 ports
- 2 SFP Ports
- Complies with IEEE802.3, IEEE802.3u, and IEEE802.3ab Ethernet standards
- Supports IEEE802.3x full duplex flow control and half duplex back pressure flow control
- Energy efficient supports IEEE802.3az
Resources
Specifications
Hardware
- 10/100/1000 Ports: 24
- SFP Ports: 2
Case:
- Metal
Standards
- IEEE802.3
- IEEE802.3u
- IEEE802.3ab
- IEEE802.3az
Switching Fabric
- 48Gbps
Packet Forwarding Rate (in 64 bytes)
- 10M: 14881 pps
- 100M: 148810 pps
- 1000M: 1488100 pps
Buffer Memory
- 512K Bytes
Jumbo Frame
- 9K Bytes
Dimensions
- 17.30 x 5.20 x 1.80in (WxDxH)
- 441 x 131 x 44mm (WxDxH)
Temperature
- Operating: 0°C ~ 40°C (32°F ~104°F)
- Storage: -40°C ~ 70°C (-40°F ~158°F)
Humidity
- Operating: 10% ~ 90% RH non-condensing
- Storage: 5%~90% RH non-condensing
Software Features
Port
- Auto-MDI/MDIX Crossover Detecting
- IEEE802.3X Full Duplex Flow Control
- Half Duplex Back Pressure Flow Control
Safety, EMC
Safety
- CE, LVD
EMC
- FCC, CE Class A
