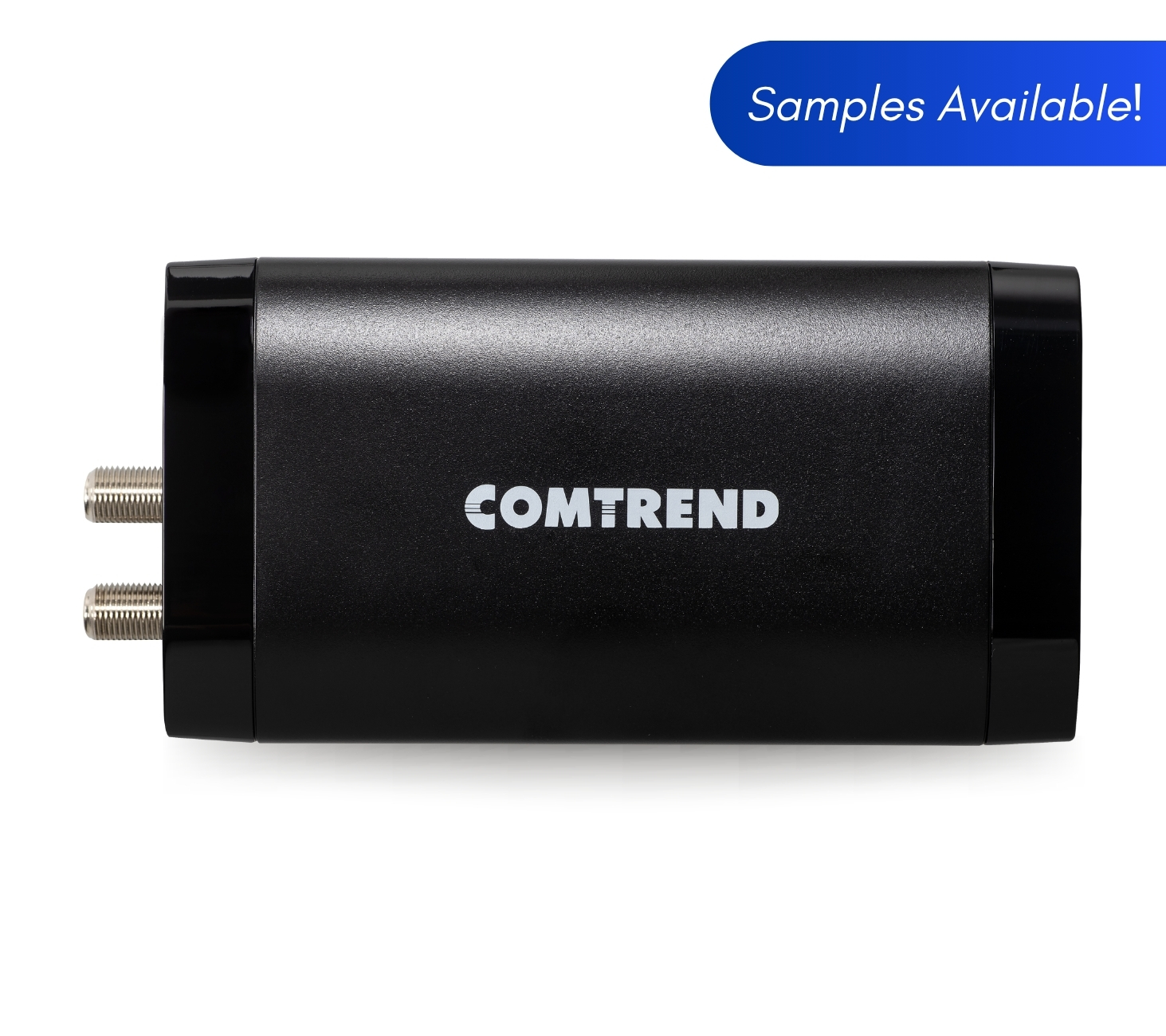

Comtrend’s G.hn Coax DPU is a coaxial headend device with a flexible SFP/Gigabit Ethernet uplink hybrid solution designed to unlock gigabit broadband for Multi-Dwelling Units (MDUs).
- Cost-Effective Fiber Alternative – Delivers near-symmetrical Gigabit services without the high costs and complexity of fiber retrofits.
- Leverages Existing Coax Infrastructure – Avoids disruptive construction while maximizing deployment efficiency.

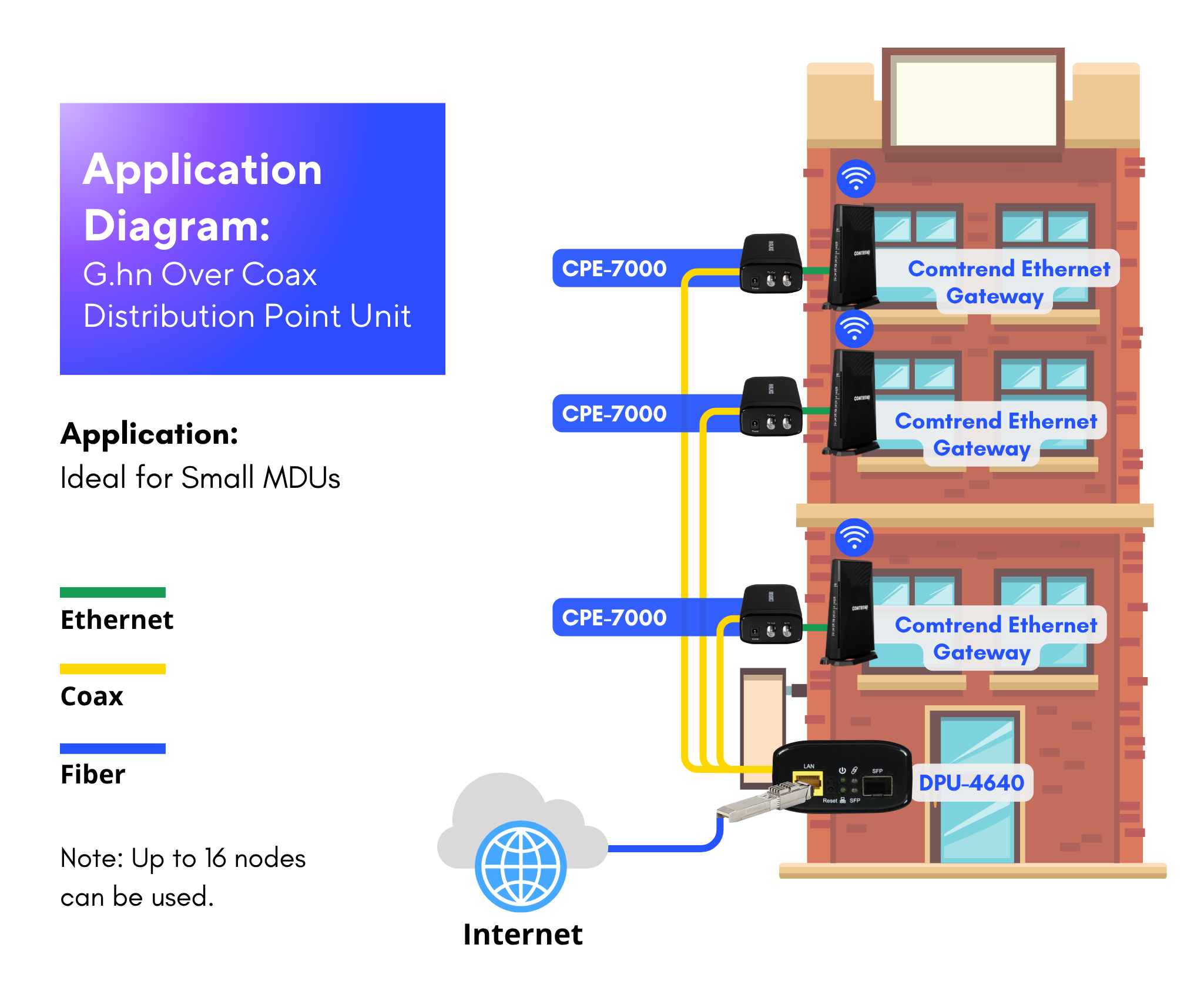

- Designed for MDUs – Ideal for brownfield Multi-Dwelling Units (MDUs), providing a scalable broadband solution.
Two page data sheet with product pictures and specifications.
Hardware | |
Ports | 1x Port F-connector (G.hn) 1x Port F-Connector (TV Out) 1x Gigabit Ethernet WAN/LAN 1x Gigabit SFP Port WAN |
LED Indicators | Power, LAN, (G.hn) Link |
Power Input | DC 12V/1A |
Dimensions | 133mm (D) x 70mm (W) x 38mm (H) |
Uplink | |
Gigabit Ethernet (RJ-45) | Integrated |
Gigabit SFP | Integrated |
G.hn Wave 2 Master | |
Standards | Supports ITU-T G.9960/9961/9962/9963/9964 Unified high-speed wireline-based home networking transceivers |
Environment | |
Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Operating Humidity | 10% ~ 90% non-condensing |
Software | |
Features |
|
Certifications | CE, FCC, UL / cUL, ITU-T G.hn Standard |
