Features
Designed for fast, cost-effective broadband delivery, the CPE-7000 offers the following advantages:
- Easy Installation: Plug-and-play deployment over in-place coax.
- Gigabit Performance: Delivers up to 1.7Gbps with G.hn Wave 2 technology.
- Flexible Integration: Connects to any Ethernet gateway or router.

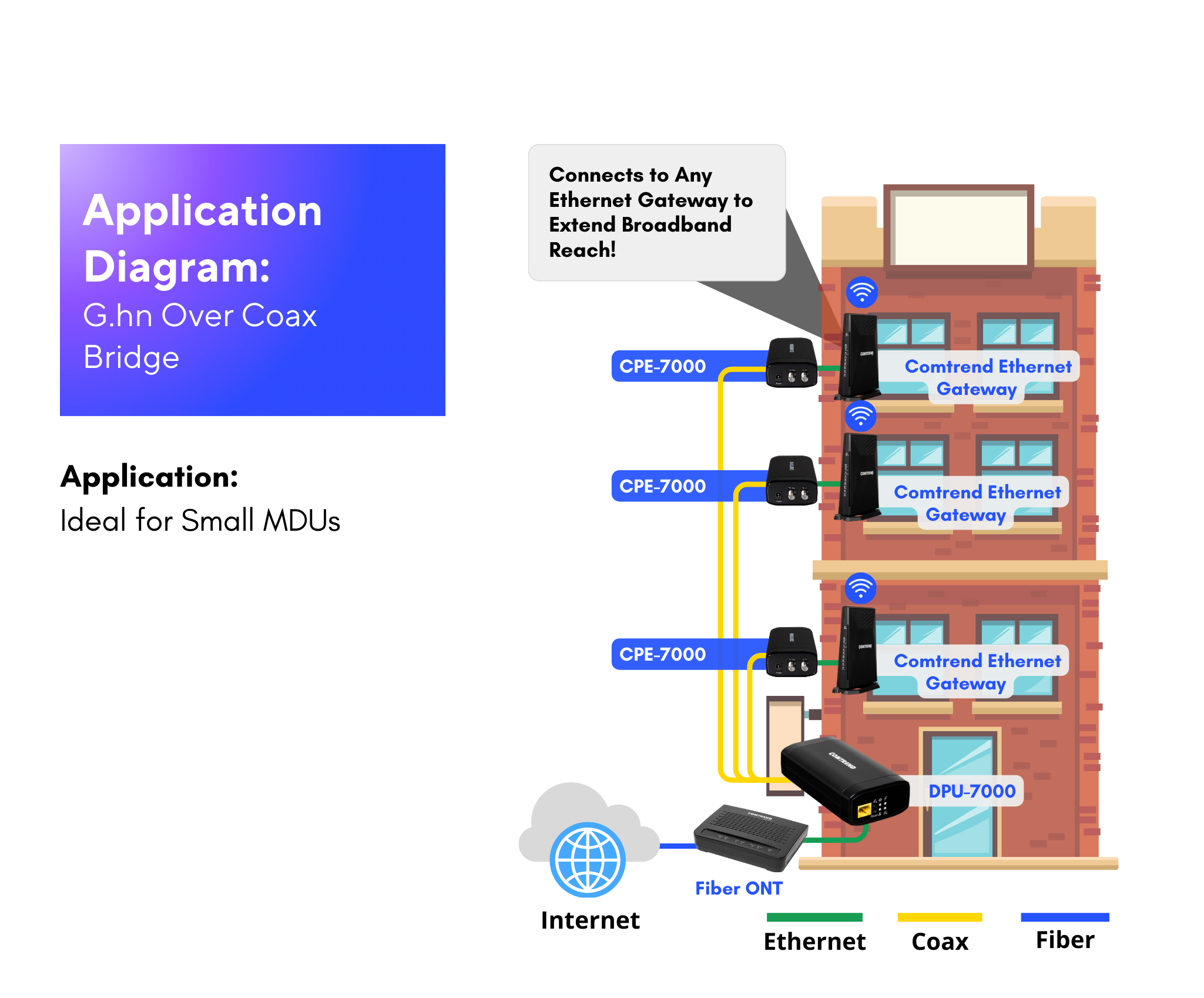

Application Diagram
Resources
Two page data sheet with product pictures and specifications.
Specifications
Hardware | |

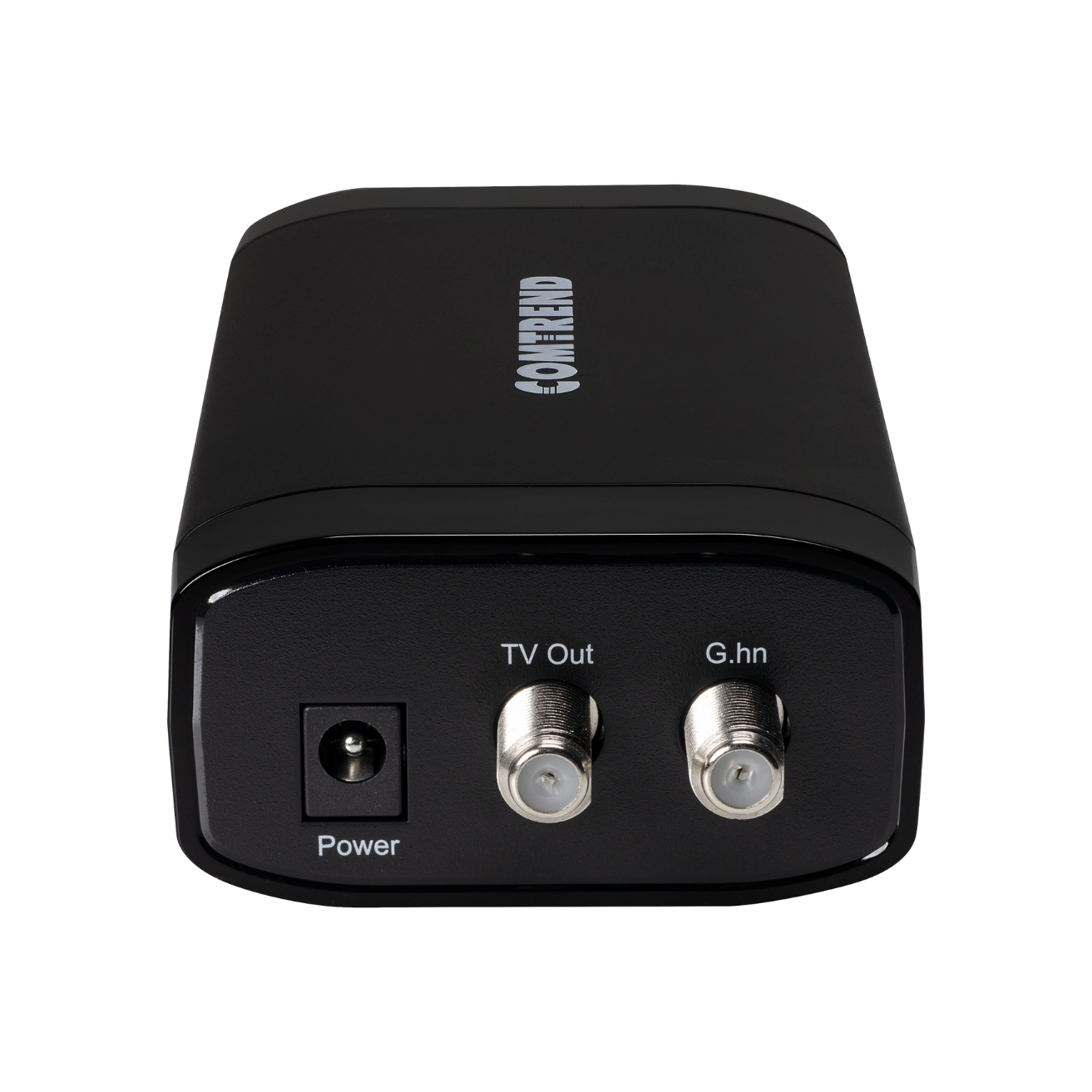

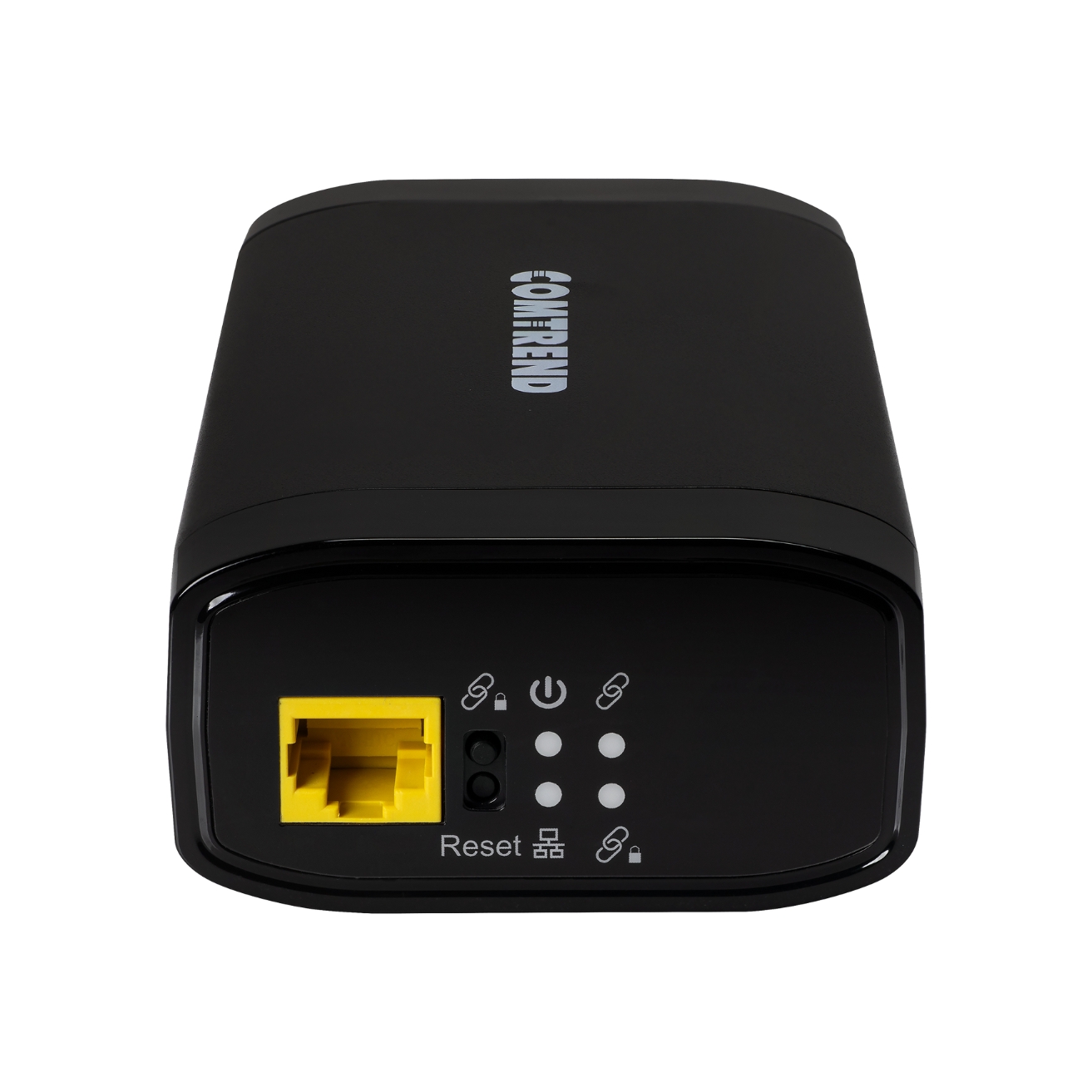

Ports | 1x Port F-connector (G.hn) 1x Port F-Connector (TV Out) 1x Gigabit Ethernet LAN |
LED Indicators | Power, LAN, (G.hn) Link, Security |
Power Input | DC 12V/1A |
Dimensions | 133mm (D) x 70mm (W) x 38mm (H) |
G.hn Wave 2 End Point | |
Standards | Supports ITU-T G.9960/9961/9962/9963/9964 Unified high-speed wireline-based home networking transceivers |
Environment | |
Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Operating Humidity | 10% ~ 90% non-condensing |
Software | |
Features |
|
Certifications | CE, FCC, UL / cUL, ITU-T G.hn Standard |
